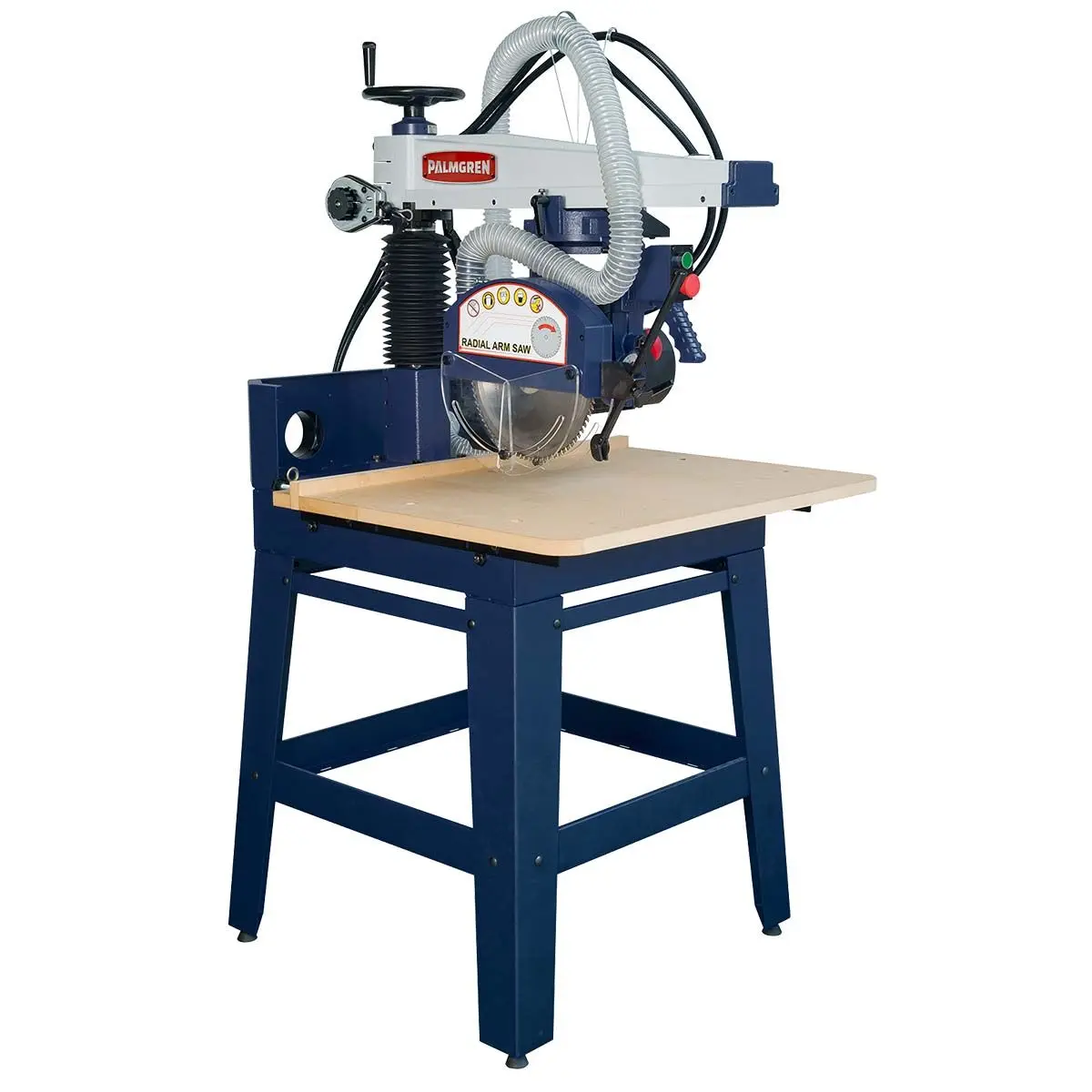

12/10" Radial Arm Saw With Stand
This radial arm saw is a unique tool as it performs many of the same functions as a table saw: ripping, crosscuts, dado, miter cuts and bevel cuts.
The powerful direct drive 2HP motor gives you the power to cut material up to 3" thick at 90°. The saw will also accept a 10" blade with a 5/8" arbor. Once you release the switch, the saws braking system will stop the blade in just a few seconds. The large wooden top, 27" x 35" is easily replaced when the time comes.
- Provides a variety of cuts: ripping, cross cutting, dados
- Automatic blade brake
- Sturdy steel stand
- Includes blade guard and anti-kickback pawls
- Saw arm uses ball bearings for head glide
| AMPS | 6.5A |
| Arbor Hole | 5/8" w/ 1" Bushing |
| Bevel Stops | 0°, 45°, 90° |
| Blade Length | 12/10" |
| Country of Origin | TW |
| Manual Horiz. Band Saw Type | Miter with vise |
| Max @ 45° | 2-1/4" |
| Max @ 90° | 3" |
| Motor HP | 2 HP |
| Sawing Type | Wood Cutting Saws |
| Table Dimensions | 27" x 35" |
| Voltage | 220V |
| Wood Cutting Saw Type | Table |
| UPC | 726896834177 |
| Unit of Measure | Each |
| Product Weight | 398 lbs |
