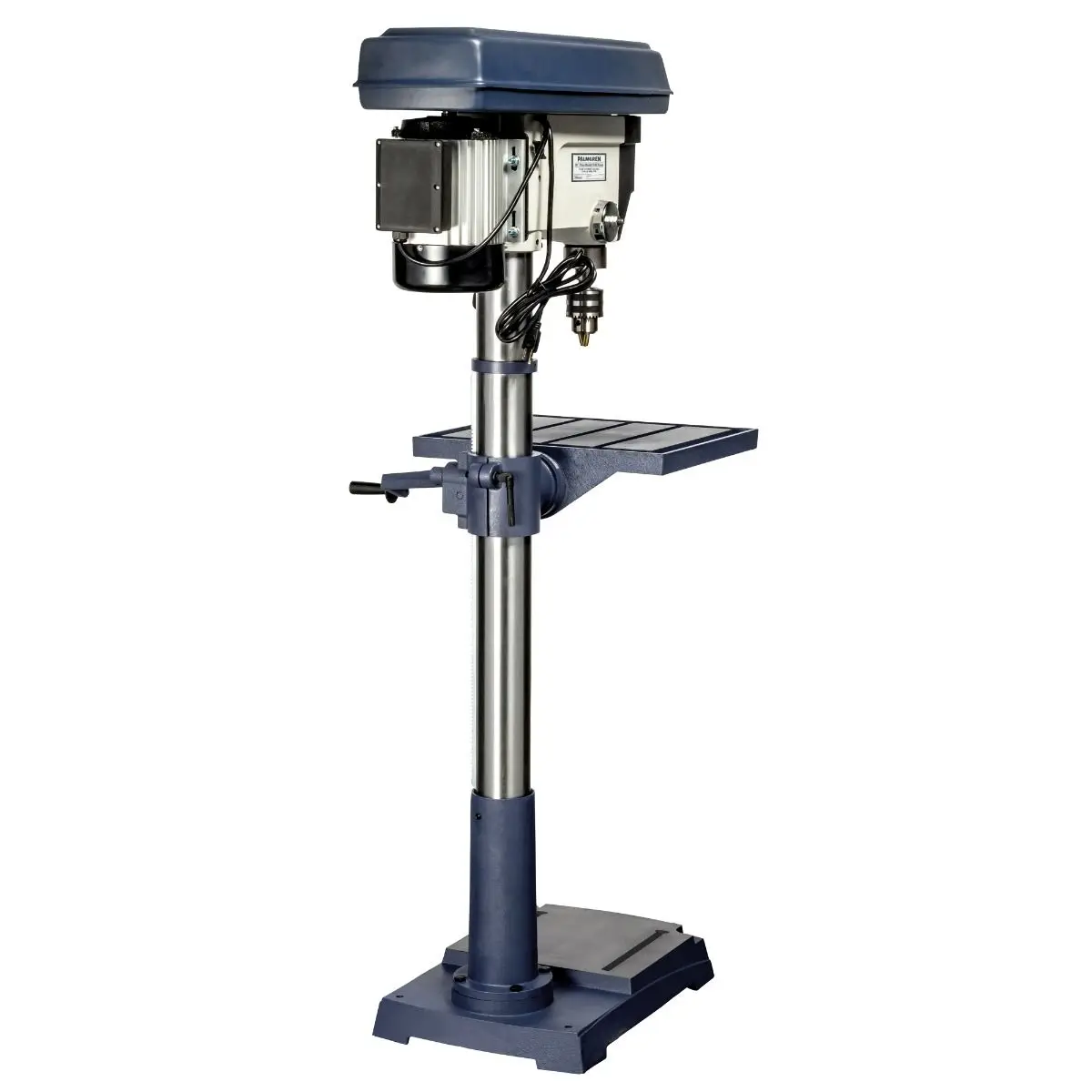

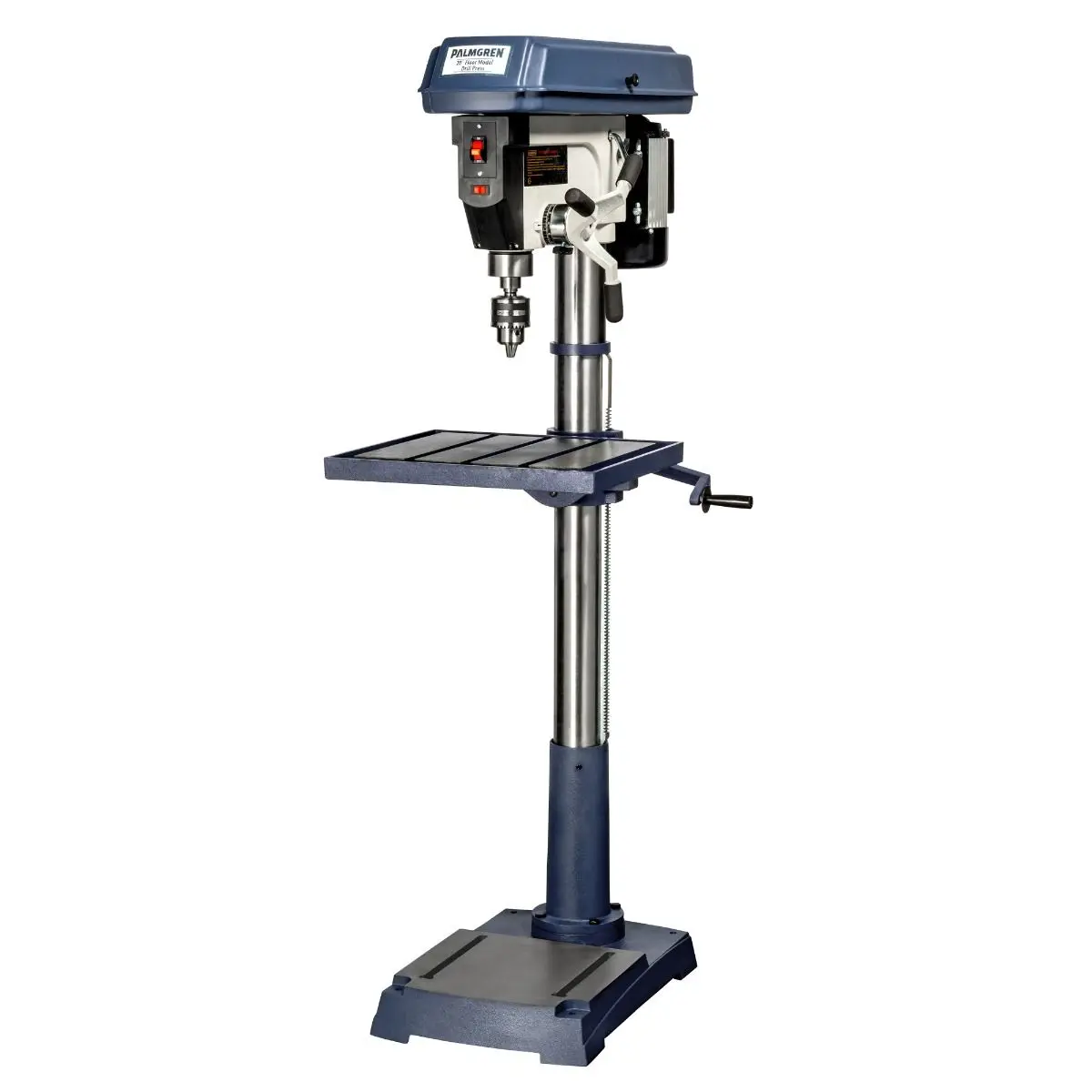

20" Floor Step Pulley Drill Press
The Palmgren step pulley drill presses have the weight and rigidity to maintain the built-in tolerances for metal and woodworking applications.
16 Speeds allow the operator to drill a wide range of large and small holes into a variety of materials.
- Quick change vertical depth stop for repetitive accurate operations

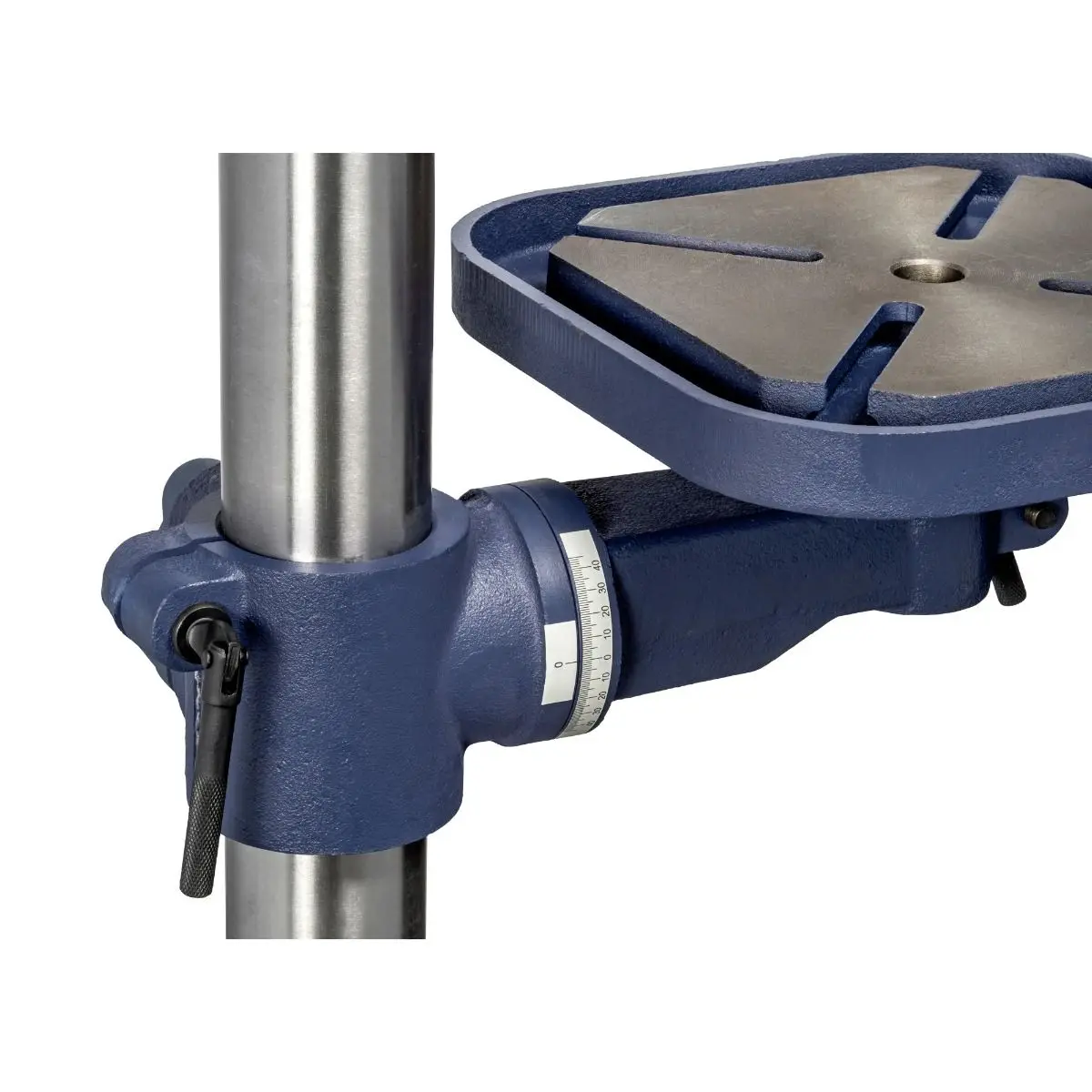

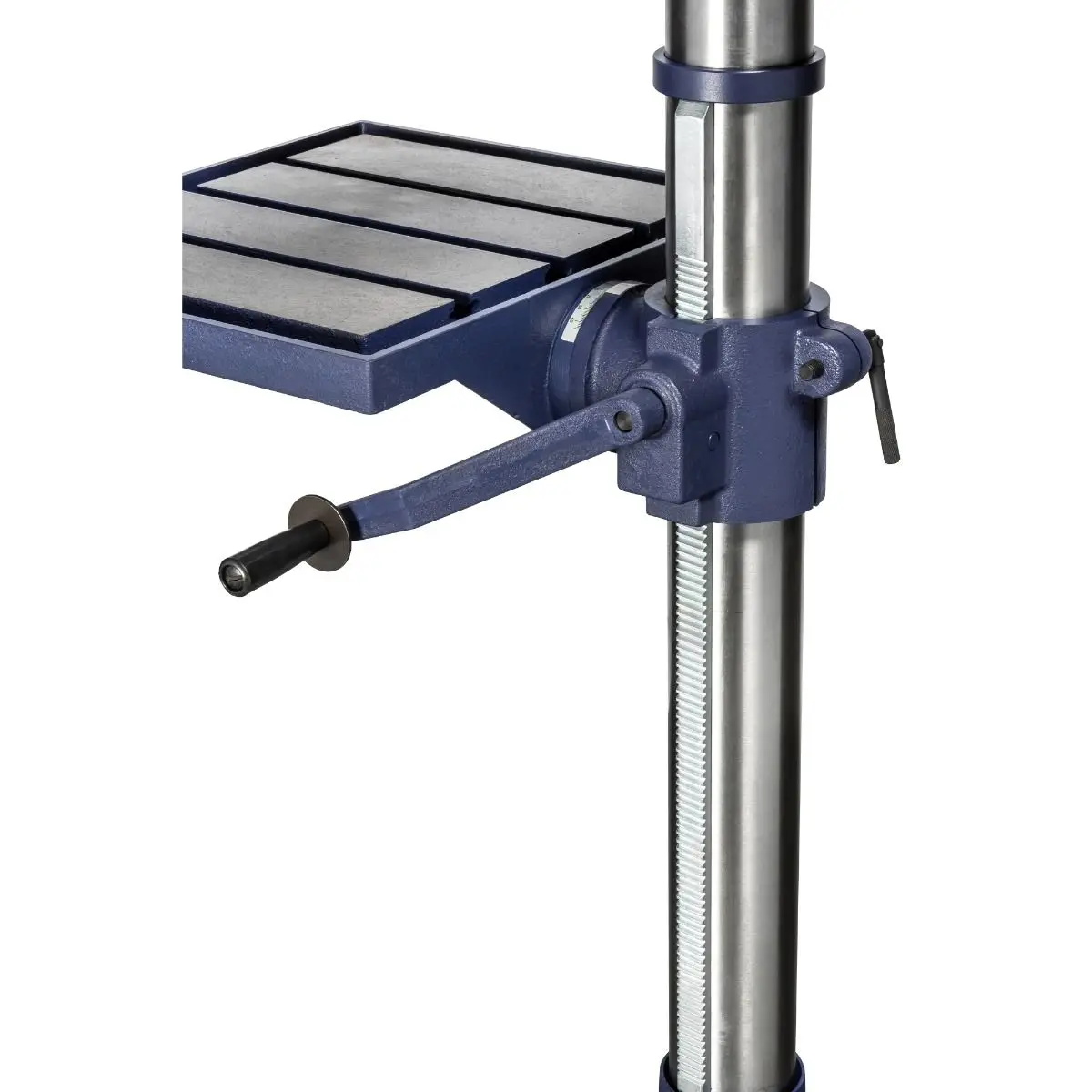

- Rack and pinion table height adjustment
- Front mounted locking rocker switch to prevent unauthorized use
- 5/8" Chuck and key
| Country of Origin | CN |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Motor HP | 1.5 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (LxWxH) | 29-1/2" D x 18-1/2" W x 68" H |
| Phase | Single |
| RPM | 180-2940 |
| Spindle Travel | 5" |
| Swing | 20" |
| Table Dimensions | 18-1/2" x 16-1/2" |
| Table Slots | 5/8" |
| Taper Range | MT3/JT3 |
| Voltage | 120/240 |
| Warranty | 3 Year |
| UPC | 726896802206 |
| Unit of Measure | Each |
Product Manual
The Palmgren step pulley drill presses have the weight and rigidity to maintain the built-in tolerances for metal and woodworking applications.
16 Speeds allow the operator to drill a wide range of large and small holes into a variety of materials.
- Quick change vertical depth stop for repetitive accurate operations
- Rack and pinion table height adjustment
- Front mounted locking rocker switch to prevent unauthorized use
- 5/8" Chuck and key
| Country of Origin | CN |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Motor HP | 1.5 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (LxWxH) | 29-1/2" D x 18-1/2" W x 68" H |
| Phase | Single |
| RPM | 180-2940 |
| Spindle Travel | 5" |
| Swing | 20" |
| Table Dimensions | 18-1/2" x 16-1/2" |
| Table Slots | 5/8" |
| Taper Range | MT3/JT3 |
| Voltage | 120/240 |
| Warranty | 3 Year |
| UPC | 726896802206 |
| Unit of Measure | Each |
Product Manual
$728.99
Original: $2,082.82
-65%20" Floor Step Pulley Drill Press—
$2,082.82
$728.99Description
The Palmgren step pulley drill presses have the weight and rigidity to maintain the built-in tolerances for metal and woodworking applications.
16 Speeds allow the operator to drill a wide range of large and small holes into a variety of materials.
- Quick change vertical depth stop for repetitive accurate operations
- Rack and pinion table height adjustment
- Front mounted locking rocker switch to prevent unauthorized use
- 5/8" Chuck and key
| Country of Origin | CN |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Motor HP | 1.5 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (LxWxH) | 29-1/2" D x 18-1/2" W x 68" H |
| Phase | Single |
| RPM | 180-2940 |
| Spindle Travel | 5" |
| Swing | 20" |
| Table Dimensions | 18-1/2" x 16-1/2" |
| Table Slots | 5/8" |
| Taper Range | MT3/JT3 |
| Voltage | 120/240 |
| Warranty | 3 Year |
| UPC | 726896802206 |
| Unit of Measure | Each |
