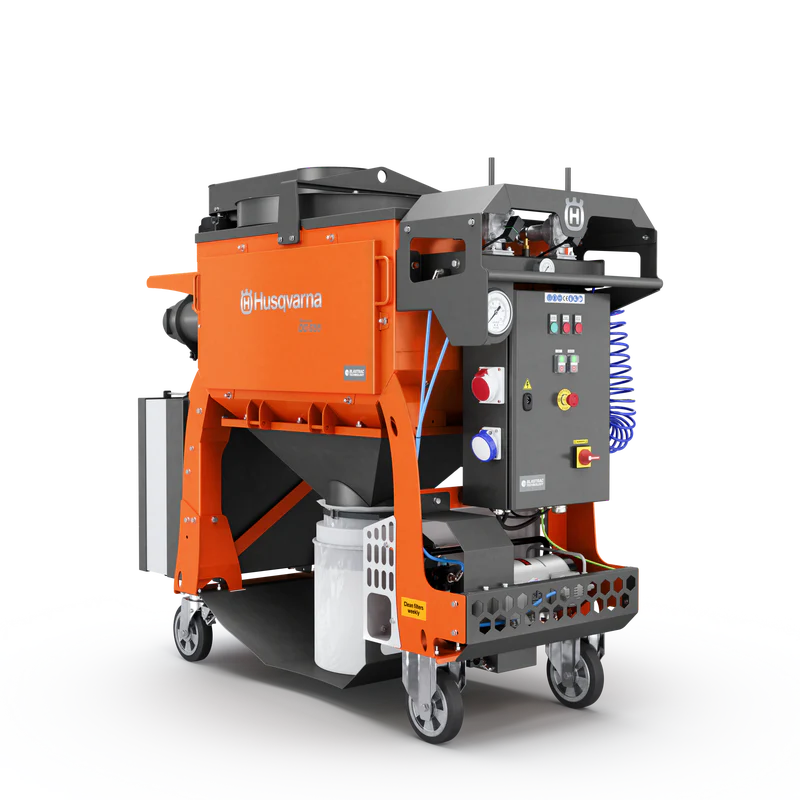

Blastrac DC 655: Compact and Insulated Dust Collector

The Blastrac DC 655 is a compact and insulated dust collector designed for easy transportation and maneuverability. This powerful heavy-duty dust collection system combines power, efficiency, and productivity, making it ideally suited for use with large shot blasting and steel blasting machines. It features six M-class cartridge filters, with an optional H14 HEPA filter kit available. The unit is equipped with a dustbin kit and can also be configured with either a Longopac® system or a big bag system. The pulse filter cleaning system ensures automatic filter cleaning for optimal performance.

Key Features

• Compact and insulated design for easy transport and maneuverability.
• Six M-class cartridge filters with optional H14 HEPA filter kit.
• Equipped with a dustbin kit, Longopac® system, or big bag system.
• Pulse filter cleaning system for automatic filter maintenance.
• Ideal for use with large shot blasting and steel blasting machines.

Specifications

Specification	Blastrac DC 655 | 60 Hz | HEPA | DUSTBIN | US	Blastrac DC 655 | 60 Hz | HEPA | LONGOPAC | US
Motor
Rated input power	8.3 hp	8.3 hp
Phases	3 ph	3 ph
Voltage	240-480/277 V	240-480/277 V
Rated current	37 or 67 A	37 or 67 A
Frequency	60 Hz	60 Hz
Power source	Corded	Corded
Product Data
Air flow	5,436.8 cfm	5,436.8 cfm
Container capacity	22 gal (US)	-
Dimensions
Product size length	68 in	68 in
Product size width	29.8 in	29.8 in
Product size height	64.7 in	64.7 in
Weight	1,060 lbs	1,053 lbs
