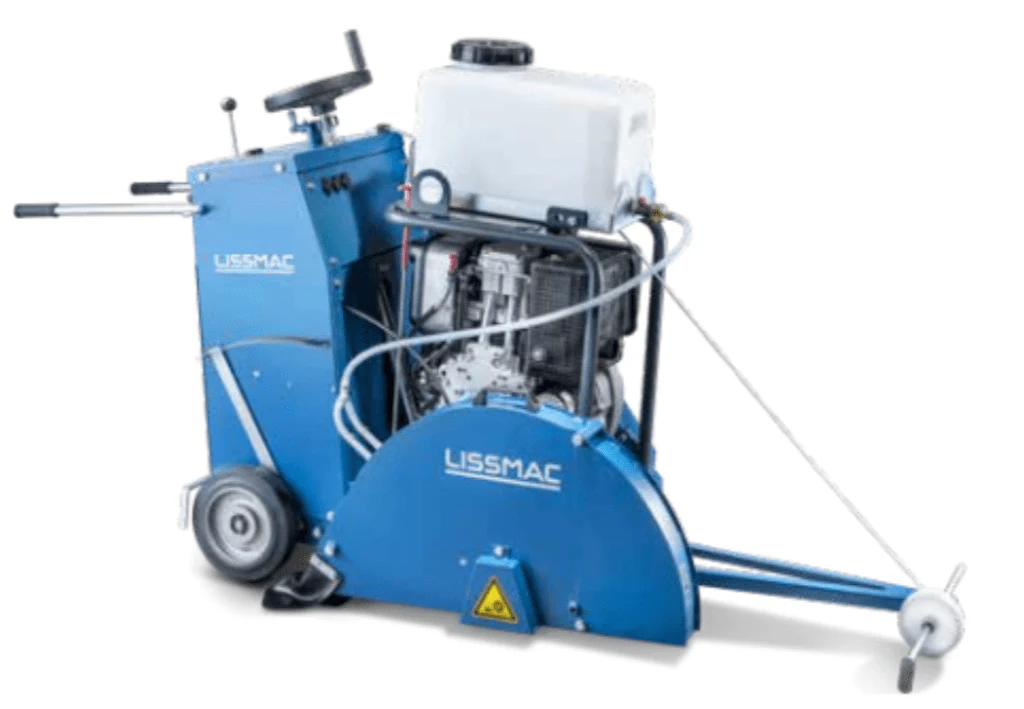

Lissmac Multicut 400 P Saw
Lissmac Multicut 400 P Saw is Powerful And Compact Floor Saw For Challenging Building Site Conditions - Blade Guard sold separately
Compact floor saw with scissor technology
· Drive via hydrostat guarantees smooth and controlled operation of the machine
· Optimum power transfer with high performance V-belts
· Warp-resistant sheet frame construction
· The compact design and balanced chassis permit easy manoeuvring around the construction site
· The low centre of gravity ensures a precise saw cut
· Very good straight cut thanks to the adjustable rear axle
· Electro- hydraulic lowering and raising of the saw blade with a threaded spindle with cutting depth indicator prevents damage to the saw blade
· Height adjustable handles allow for ergonomic operation
· Saw hood front can be raised for intersections
· Rapid changeover from left to right-hand cutting
· Easy access for prevalent maintenances (air filter, battery, oil filter, fuel filter) due to the perfect drive unit position
· Parking brake and neutral (free-wheeling) comes as a standard feature
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.
- Weight: 416 kg
- Cutting depth: 315 mm
- Disc Ø: 1000 mm
- Transport length: 1.3 m
- Transport width: 0.85 m
- Transport height: 1.35 m
- Power source: Gasoline
- Engine manuf.: Kohler
- Engine typek.: A.
- Engine power: 26.1 kW
- Revolutions at max torque: 1600 rpm
- No. of cylinders: 3
- Emission level: EU 5 / EPA Phase 3
