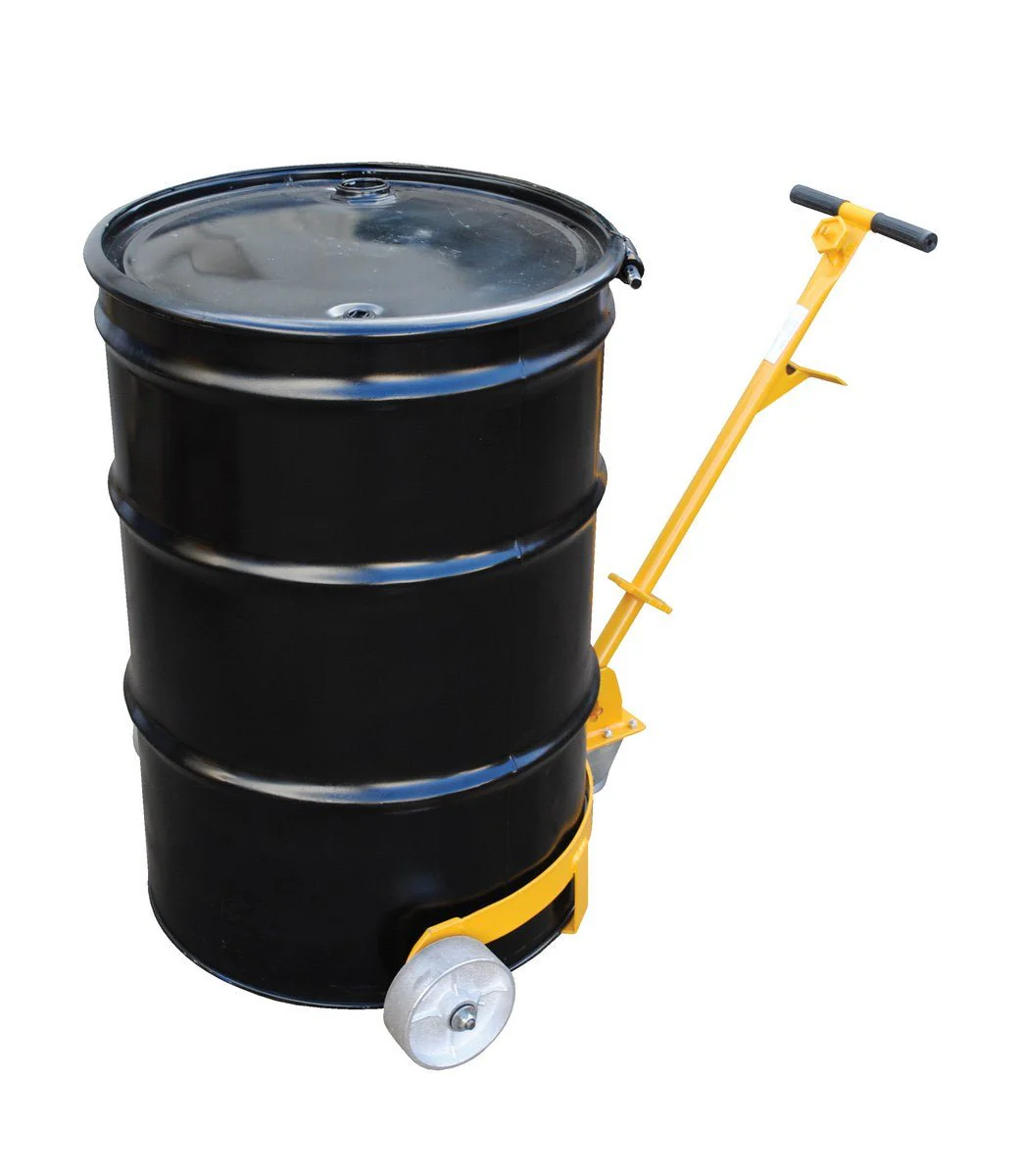

Lo-Profile Drum Caddies with Bung Wrench Handle
Reduce injuries caused by manually lifting and moving drums. Transport (1) 55 or 30 gallon drum or (2) 5 gallon pails with the Lo-Profile Drum Caddy.
To use: align unit in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Unit rolls easily on two 6"x2" rigid wheels and one 3"x1" swivel caster. The removable handle doubles as a bung nut wrench and seal remover. Cradle height is 1/2". Inside cradle diameter is 23-1/2". Steel construction. Yellow painted finish. US Patent Number 6682084.
| Drum Caddies | ||||
| Model | Straddle (WxD) |
Wheel Type |
Capacity (lbs) |
Wt. (lbs) |
| LO-DC-MR | 28-1/8"x21-5/8" | Mold-on-rubber | 1,000 | 41 |
| LO-DC-CI | 28-1/8"x21-5/8" | Steel | 1,200 | 47 |
| LO-DC-PU | 28-1/8"x21-5/8" | Poly-on-Steel | 1,200 | 46 |
| LO-DC-PH | 28-1/8"x21-5/8" | Phenolic | 1,200 | 46 |
| Drum Caddy W/ Scale | ||||||||
| Model | Image | Overall Dims (LxWxH) |
Deck Dims (LxWxH) |
Handle Height |
Poly Casters |
Scale Batteries |
Capacity (lbs) |
Wt. (lbs) |
| LO-DC-SCL |  |
38-1/2"x31-1/2"x49-1/4" | 15-3/4"x25-1/2"x1-1/2" | 37-1/2" | (1) 4x2 Swivel w/ Brake (2) 5x2 Rigid |
(6) - AA | 800 | 142 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
Reduce injuries caused by manually lifting and moving drums. Transport (1) 55 or 30 gallon drum or (2) 5 gallon pails with the Lo-Profile Drum Caddy.
To use: align unit in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Unit rolls easily on two 6"x2" rigid wheels and one 3"x1" swivel caster. The removable handle doubles as a bung nut wrench and seal remover. Cradle height is 1/2". Inside cradle diameter is 23-1/2". Steel construction. Yellow painted finish. US Patent Number 6682084.
| Drum Caddies | ||||
| Model | Straddle (WxD) |
Wheel Type |
Capacity (lbs) |
Wt. (lbs) |
| LO-DC-MR | 28-1/8"x21-5/8" | Mold-on-rubber | 1,000 | 41 |
| LO-DC-CI | 28-1/8"x21-5/8" | Steel | 1,200 | 47 |
| LO-DC-PU | 28-1/8"x21-5/8" | Poly-on-Steel | 1,200 | 46 |
| LO-DC-PH | 28-1/8"x21-5/8" | Phenolic | 1,200 | 46 |
| Drum Caddy W/ Scale | ||||||||
| Model | Image | Overall Dims (LxWxH) |
Deck Dims (LxWxH) |
Handle Height |
Poly Casters |
Scale Batteries |
Capacity (lbs) |
Wt. (lbs) |
| LO-DC-SCL | |
38-1/2"x31-1/2"x49-1/4" | 15-3/4"x25-1/2"x1-1/2" | 37-1/2" | (1) 4x2 Swivel w/ Brake (2) 5x2 Rigid |
(6) - AA | 800 | 142 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Original: $167.07
-65%$167.07
$58.47Description
Reduce injuries caused by manually lifting and moving drums. Transport (1) 55 or 30 gallon drum or (2) 5 gallon pails with the Lo-Profile Drum Caddy.
To use: align unit in front of drum, remove handle, and grip drum with the handle. Tip drum up while guiding the caddy base under the drum. Re-attach handle and transport drum to desired location. Unit rolls easily on two 6"x2" rigid wheels and one 3"x1" swivel caster. The removable handle doubles as a bung nut wrench and seal remover. Cradle height is 1/2". Inside cradle diameter is 23-1/2". Steel construction. Yellow painted finish. US Patent Number 6682084.
| Drum Caddies | ||||
| Model | Straddle (WxD) |
Wheel Type |
Capacity (lbs) |
Wt. (lbs) |
| LO-DC-MR | 28-1/8"x21-5/8" | Mold-on-rubber | 1,000 | 41 |
| LO-DC-CI | 28-1/8"x21-5/8" | Steel | 1,200 | 47 |
| LO-DC-PU | 28-1/8"x21-5/8" | Poly-on-Steel | 1,200 | 46 |
| LO-DC-PH | 28-1/8"x21-5/8" | Phenolic | 1,200 | 46 |
| Drum Caddy W/ Scale | ||||||||
| Model | Image | Overall Dims (LxWxH) |
Deck Dims (LxWxH) |
Handle Height |
Poly Casters |
Scale Batteries |
Capacity (lbs) |
Wt. (lbs) |
| LO-DC-SCL | |
38-1/2"x31-1/2"x49-1/4" | 15-3/4"x25-1/2"x1-1/2" | 37-1/2" | (1) 4x2 Swivel w/ Brake (2) 5x2 Rigid |
(6) - AA | 800 | 142 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
