Minnich A-2V Vertical Drill
Minnich A-2V Vertical Drill

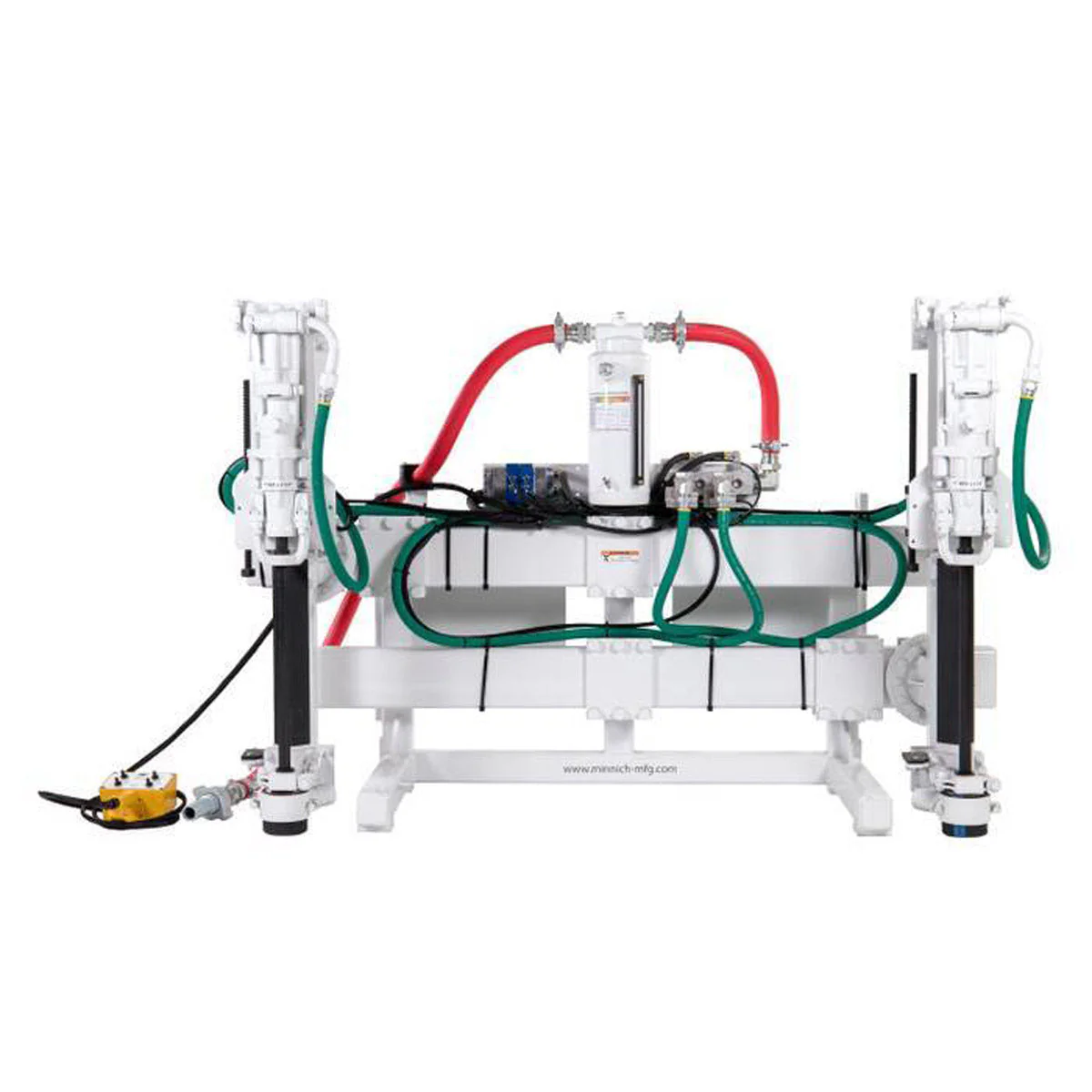

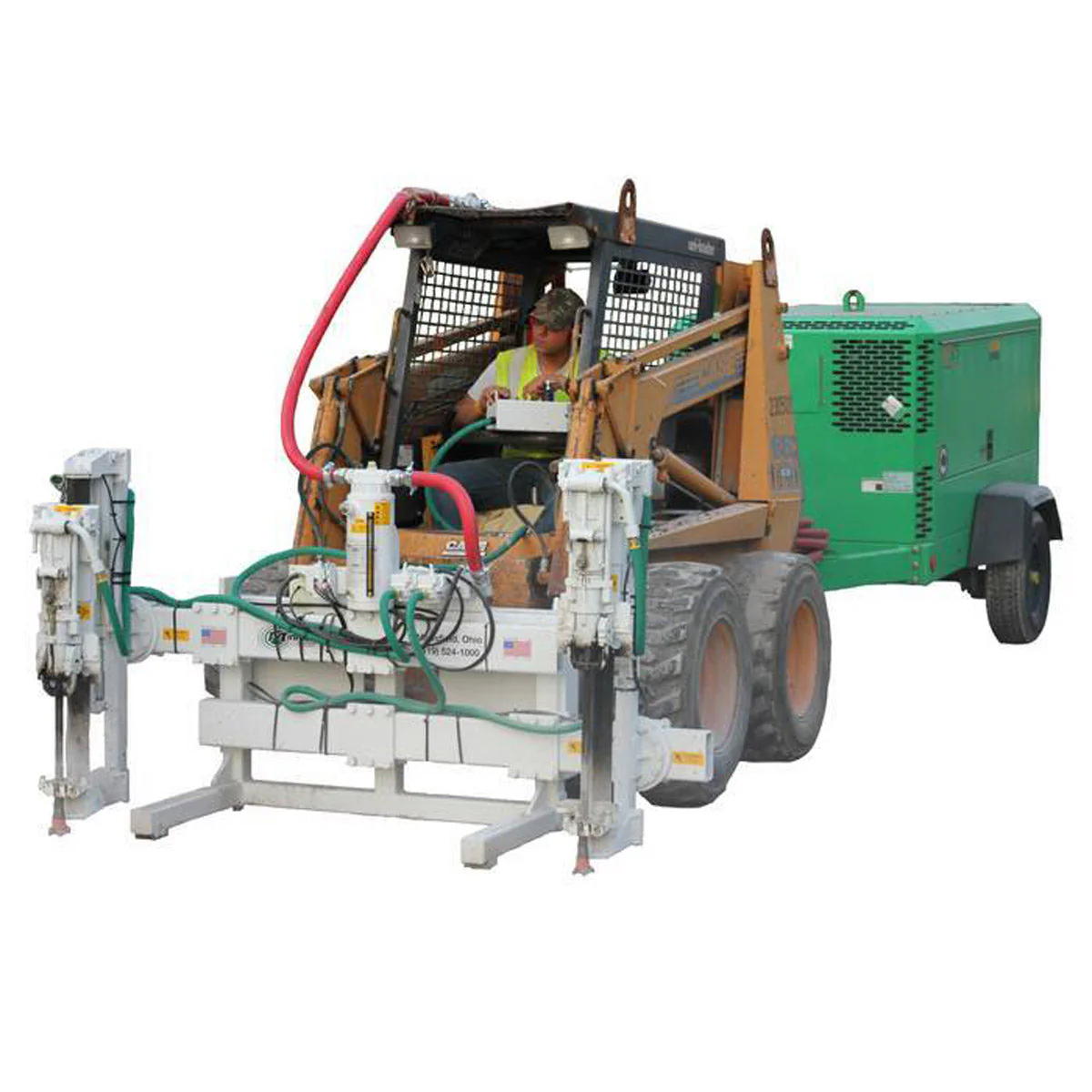

Make quicker work of vertical drilling jobs with the Minnich A-2V equipment-mounted drill. Powered by a compressor, the A-2V unit can be mounted to a skid-steer loader, loader or farm tractor to form a self-contained and highly mobile solution for drilling vertical holes. Ideal for jobs on which multiple damaged slabs need to be pulled, the A-2V drill offers operators a more efficient and safer alternative to drilling holes manually. The A-2V unit's two drills can swivel to drill holes at an angle.
Specifications
| Model | A-2V |
|---|---|
| Drill Steel Shank | 1" x 4.25" (25.4mm x 107.9 mm) |
| Drill Steel Length U.C. | 24" (61.0cm) |
| Drill Bit Diameter | .625" - 2.50" (15.9mm to 63.5mm) |
| *Maximum Drill Depth | 16" (40.6cm) |
| Hole Spacing | 5'-10' |
| SCFM Required Per Drill | 120 (3.4 m3/min) |
| PSIG Required | 120 (0.83MPa) |
Minnich A-2V Vertical Drill
Make quicker work of vertical drilling jobs with the Minnich A-2V equipment-mounted drill. Powered by a compressor, the A-2V unit can be mounted to a skid-steer loader, loader or farm tractor to form a self-contained and highly mobile solution for drilling vertical holes. Ideal for jobs on which multiple damaged slabs need to be pulled, the A-2V drill offers operators a more efficient and safer alternative to drilling holes manually. The A-2V unit's two drills can swivel to drill holes at an angle.
Specifications
| Model | A-2V |
|---|---|
| Drill Steel Shank | 1" x 4.25" (25.4mm x 107.9 mm) |
| Drill Steel Length U.C. | 24" (61.0cm) |
| Drill Bit Diameter | .625" - 2.50" (15.9mm to 63.5mm) |
| *Maximum Drill Depth | 16" (40.6cm) |
| Hole Spacing | 5'-10' |
| SCFM Required Per Drill | 120 (3.4 m3/min) |
| PSIG Required | 120 (0.83MPa) |
Original: $23,000.00
-65%$23,000.00
$8,050.00Description
Minnich A-2V Vertical Drill
Make quicker work of vertical drilling jobs with the Minnich A-2V equipment-mounted drill. Powered by a compressor, the A-2V unit can be mounted to a skid-steer loader, loader or farm tractor to form a self-contained and highly mobile solution for drilling vertical holes. Ideal for jobs on which multiple damaged slabs need to be pulled, the A-2V drill offers operators a more efficient and safer alternative to drilling holes manually. The A-2V unit's two drills can swivel to drill holes at an angle.
Specifications
| Model | A-2V |
|---|---|
| Drill Steel Shank | 1" x 4.25" (25.4mm x 107.9 mm) |
| Drill Steel Length U.C. | 24" (61.0cm) |
| Drill Bit Diameter | .625" - 2.50" (15.9mm to 63.5mm) |
| *Maximum Drill Depth | 16" (40.6cm) |
| Hole Spacing | 5'-10' |
| SCFM Required Per Drill | 120 (3.4 m3/min) |
| PSIG Required | 120 (0.83MPa) |
