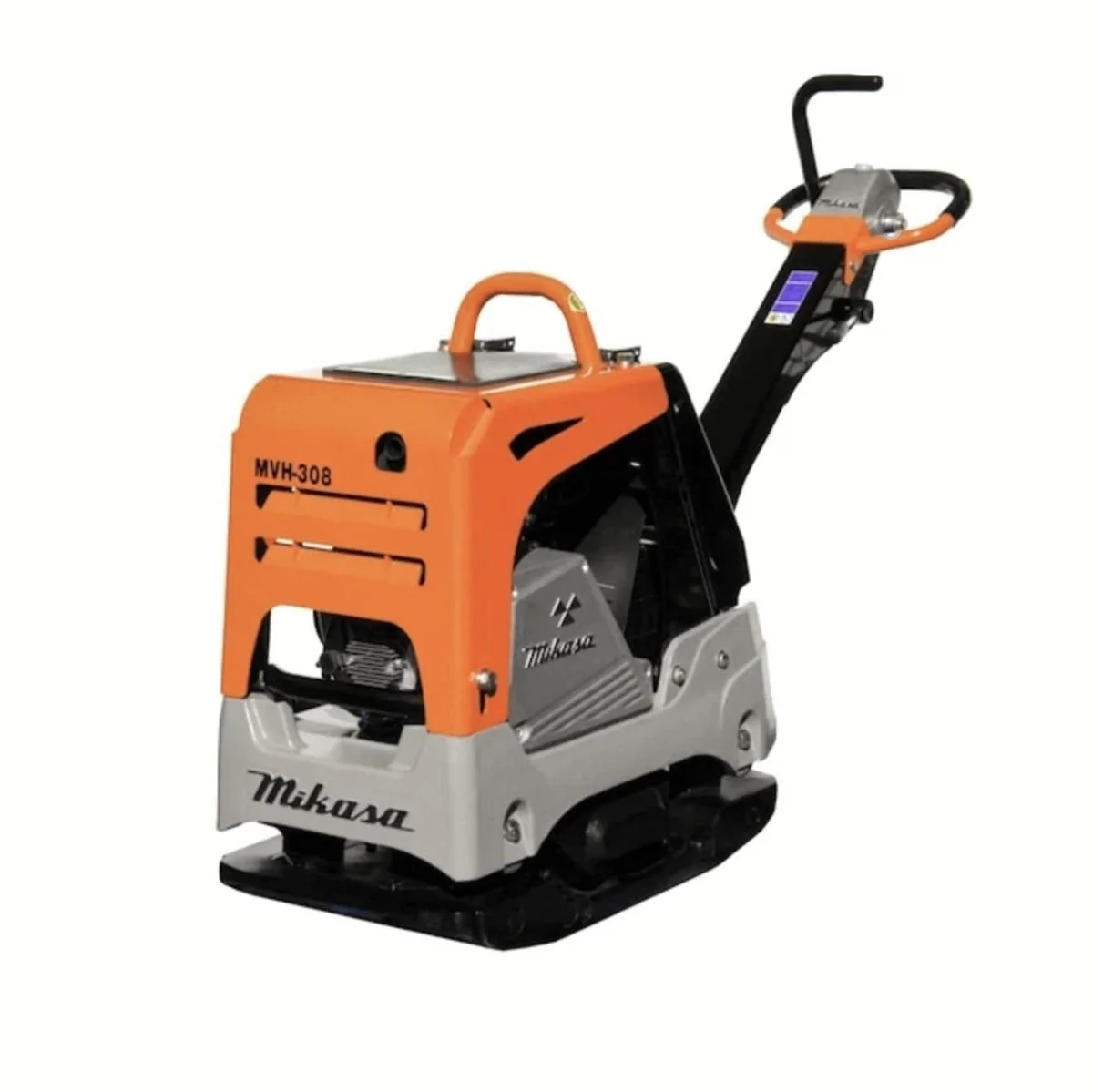

MVH308DE Reversible Plate Compactor
MVH308DE Reversible Plate Compactor are ideal for high-production and have over 10,000 pounds of impact force
Multiquip's Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
- Reliable engine with Hatz diesel offering easy electric start-up.
- Fold-out front and rear covers for easy access to all maintenance points.
- Hour/Tachometer to measure machine hour usage and engine RPM.
- Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
- Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
- Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
- Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
- Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
- Low profile base plate lowers the center of gravity dramatically improving travel speed.
- Extension plates can be added or removed to operating working width up to 6 inches.
| Centrifugal Force | 10116 lbf | 45 kN |
| Exciter Speed | 4400 VPM | |
| Plate Size |
18 x 34 in 445 x 860 mm |
|
|
Plate Size with Extensions |
24 x 34 in 600 x 860 mm |
|
|
Max Forward Speed Per Min. |
79 ft | 24 m |
| Hatz 1B30 | ||
| Overall Length | 61 in | 1540 mm |
| Overall Width | 24 in | 600 mm |
| Overall Height | 48 in | 1210 mm |
| Operating Weight | 794 lb | 360 kg |
Notice: Features and equipment specifications are subject to change without notice.
MVH308DE Reversible Plate Compactor are ideal for high-production and have over 10,000 pounds of impact force
Multiquip's Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
- Reliable engine with Hatz diesel offering easy electric start-up.
- Fold-out front and rear covers for easy access to all maintenance points.
- Hour/Tachometer to measure machine hour usage and engine RPM.
- Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
- Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
- Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
- Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
- Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
- Low profile base plate lowers the center of gravity dramatically improving travel speed.
- Extension plates can be added or removed to operating working width up to 6 inches.
| Centrifugal Force | 10116 lbf | 45 kN |
| Exciter Speed | 4400 VPM | |
| Plate Size |
18 x 34 in 445 x 860 mm |
|
|
Plate Size with Extensions |
24 x 34 in 600 x 860 mm |
|
|
Max Forward Speed Per Min. |
79 ft | 24 m |
| Hatz 1B30 | ||
| Overall Length | 61 in | 1540 mm |
| Overall Width | 24 in | 600 mm |
| Overall Height | 48 in | 1210 mm |
| Operating Weight | 794 lb | 360 kg |
Notice: Features and equipment specifications are subject to change without notice.
$5,565.00
Original: $15,900.00
-65%MVH308DE Reversible Plate Compactor—
$15,900.00
$5,565.00Description
MVH308DE Reversible Plate Compactor are ideal for high-production and have over 10,000 pounds of impact force
Multiquip's Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.
- Reliable engine with Hatz diesel offering easy electric start-up.
- Fold-out front and rear covers for easy access to all maintenance points.
- Hour/Tachometer to measure machine hour usage and engine RPM.
- Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
- Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
- Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
- Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
- Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
- Low profile base plate lowers the center of gravity dramatically improving travel speed.
- Extension plates can be added or removed to operating working width up to 6 inches.
| Centrifugal Force | 10116 lbf | 45 kN |
| Exciter Speed | 4400 VPM | |
| Plate Size |
18 x 34 in 445 x 860 mm |
|
|
Plate Size with Extensions |
24 x 34 in 600 x 860 mm |
|
|
Max Forward Speed Per Min. |
79 ft | 24 m |
| Hatz 1B30 | ||
| Overall Length | 61 in | 1540 mm |
| Overall Width | 24 in | 600 mm |
| Overall Height | 48 in | 1210 mm |
| Operating Weight | 794 lb | 360 kg |
Notice: Features and equipment specifications are subject to change without notice.
